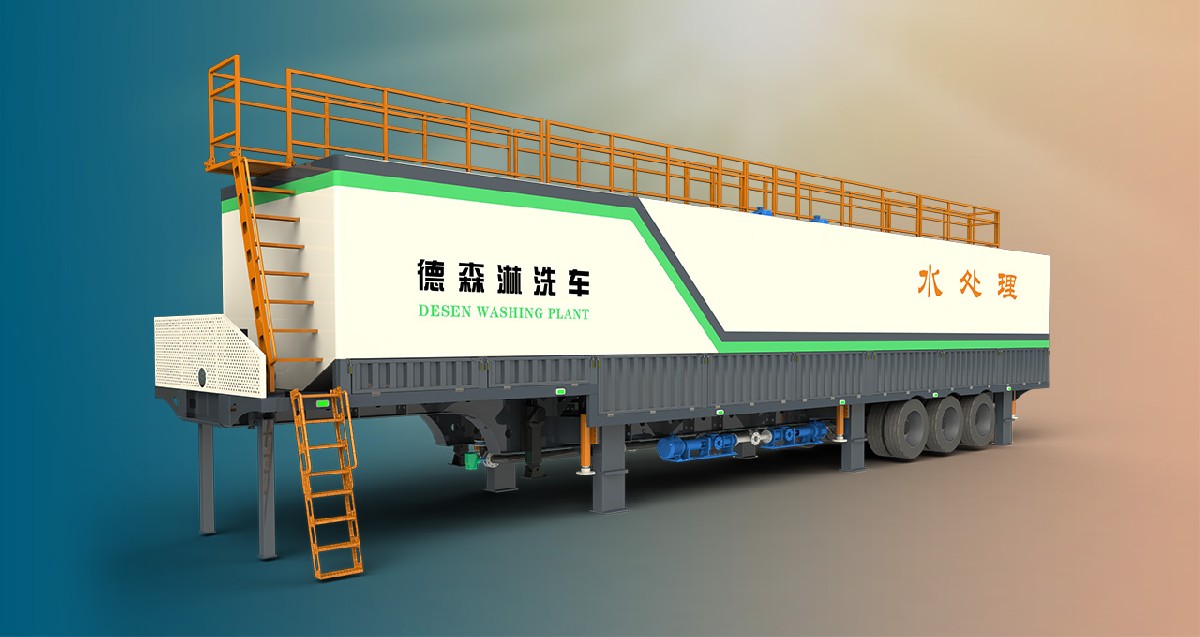

Mobile Water Treatment Plant
DSLXC/04
The Desen water treatment system DLSX/04 is designed for treatment of water from the Desen mobile solid-liquid separation plant DLSX/03.
It is composed of Inclined tube precipitation module, 5 combined dosing modular,dosing reaction module, and controlling accessories. The treated water will enter into the water buffer pool for recycling.
Characteristic
* Integrated design, compact structure, small footprint;
* The mobile module design reduces transition &project operating costs.
Video Shows
This module is a water treatment module, which mainly treats the water filtered by the washing process and then goes into the clean water cache pool for recycling.
Integrated Design
COMPACT STRUCTURE AND A SMALL FOOTPRINT, SUITABLE FOR VARIOUS WORKING CONDIT
Perfect Combination
1
Sedimentation tank
2
Reaction tank
Technical Parameters
| Model | DSLXC/03 |
| Capacity m³ | 90 |
| Power KW | 20 |
| Axles No. | Three axles |
| Electrical control system | Independent electrical control |
| Hydraulic support system | hydraulic jacking system |
| Length×Width×Height (Outline) MM | 17800×3000×4400 |
| Total weight T | 37 |
| Traction mode | By common tractor |
