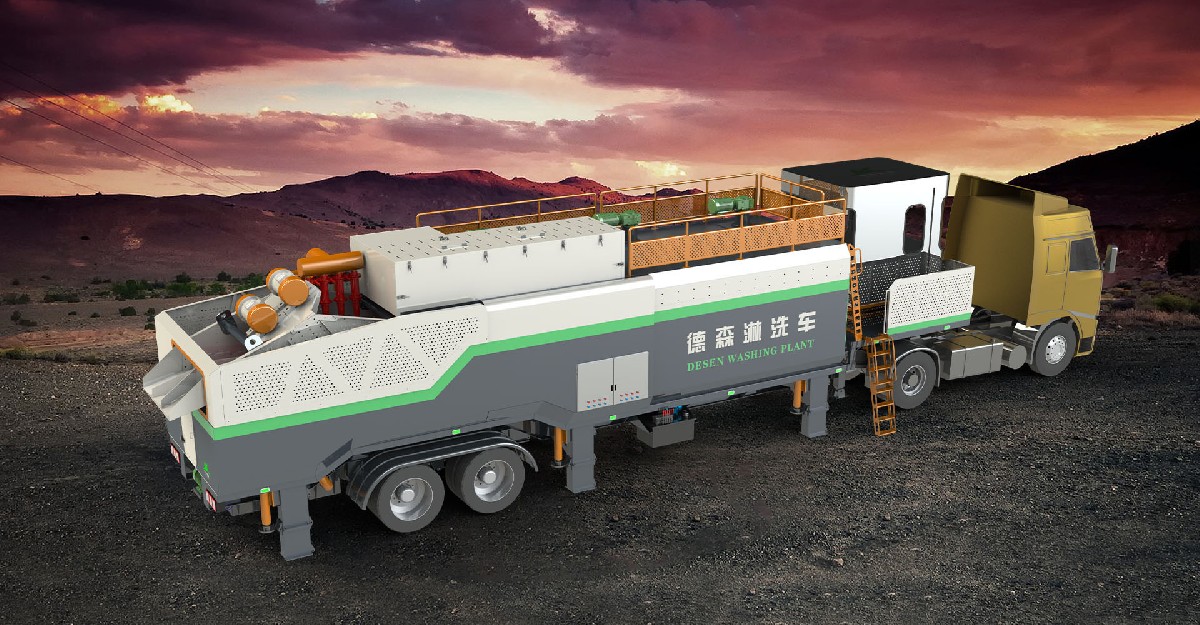

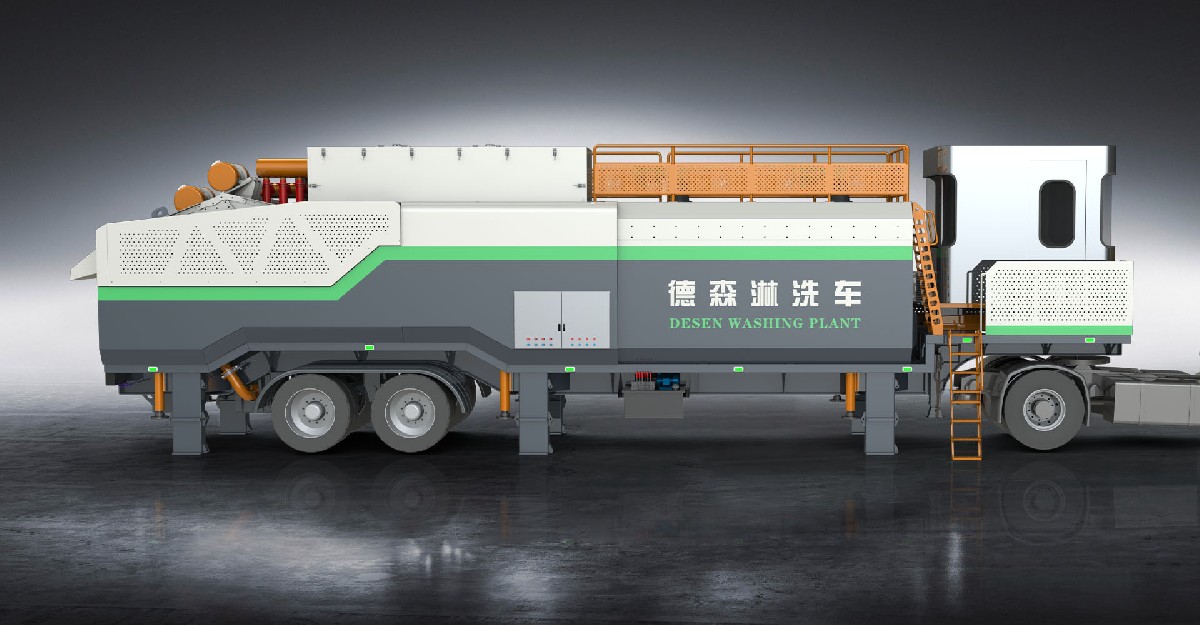

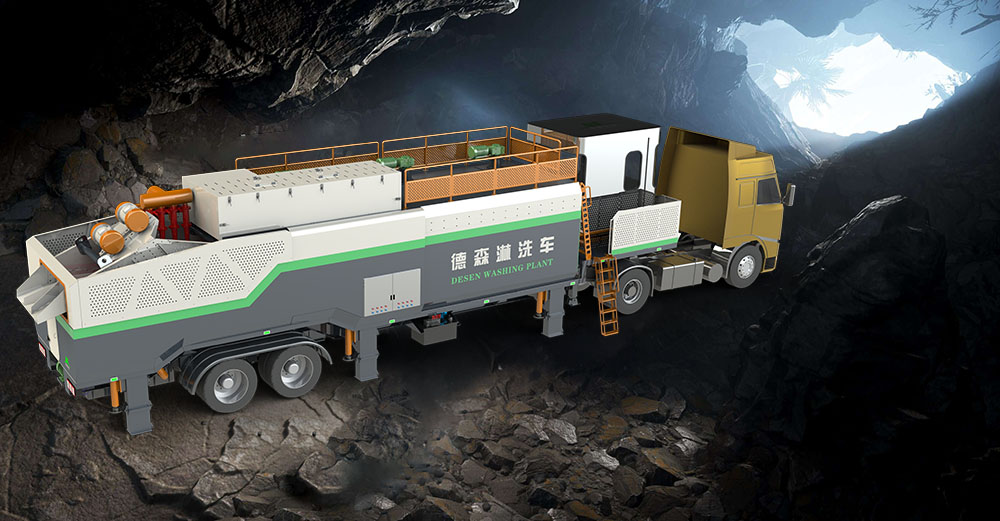

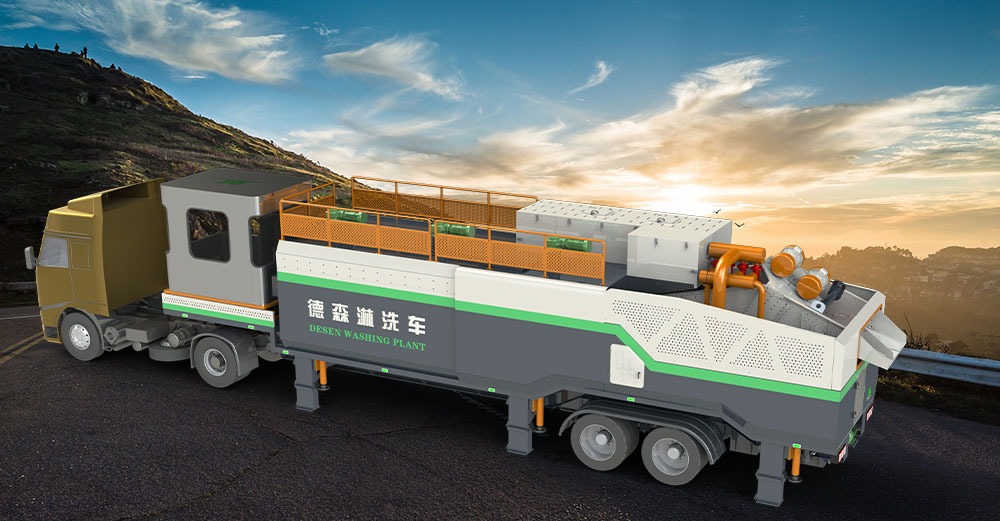

Mobile Multistage Classifying Plant
DSLXC/02
The Desen high-efficient immersion classifying plant DSLXC/02 is used for classifying slurry of concentrate no more than 30% and solid particle size no bigger than 2mm.
It can minimize the solid content in the dewatering and pressure procedure. It is mainly composed of stirring system, transmission part, supporting structure, immersion part, spiral chute , concentration screen, and slurry pump.
Characteristic
※ The Desen high-efficient immersion classifying plant DSLXC/02 can not only realize the efficient screening of the fine particles in the mud, but also improve the efficiency of chemical reaction;
※ The whole plant takes the DCS Distributed electronic control system and 5G cloud LOT. So the operation status of equipment is very clear;
※ The central control room adopts hydraulic shear fork platform control. The low position allows for safe transportation, while the high position allows for an overview.
Video Shows
The mobile washing plant integrates contaminated soil feeding unit, soil scrubbing unit and fine sand screening unit, 15-30T/H capacity. Soil Washing plant for the remediation of contaminated soils.
Integrated Design
COMPACT STRUCTURE AND A SMALL FOOTPRINT, SUITABLE FOR VARIOUS WORKING CONDIT
Perfect Combination
PLC Control unit
Efficient Grading unit
Classifying unit
Technical Parameters
| Model | DSLXC/02 |
| Capacity TPH | 30 |
| Power KW | 70 |
| Axles No. | Two axles |
| Electrical control system | Independent electrical control |
| Hydraulic support system | hydraulic jacking system |
| Length×Width×Height (Outline) MM | 14000×2900×4200 |
| Total weight T | 28.5 |
| Traction mode | Moving by tractor |
